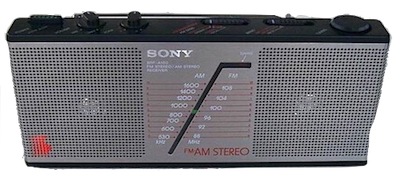

Sont Portable Radio receiver
Rode microphones  radio equipment
Copyright (c)  2016, 2017 & 2018 World of Radio Ltd,
Registered in England and Wales # 8503418.
All Rights Reserved.
Reproduction strictly prohibited.

Radio Listener with receiving kit
Microphones
Microphones have improved and their size and cost has plummeted. For many years, large broadcasters have insisted on using high end microphones, but these are not really required for most radio broadcasting.

A decent quality microphone will still cost between £75 and £400, but pay much more any you may be hard pushed to tell the difference in sound.
Library
After seventy years of recoding development, digital storage has now made most anologue forms redundant. For audio quality and controllability, audio is now recorded as a series of  zeros and ones on either magnetic Hard Drives or on Solid State Drives
Processing
Its important that the audio is processed correctly in a radio station's audio chain. This is dealt with in on other pages about Audio Processing and microphone pre-amps and effects.

Interconnect
Even something as simple as the cabling between various items of equipment and studios is improved and changed. Previously all interconnection of audio, and often of switching circuitry too, had to be in screened audio quality cable. Dozens of cables can now be replaced by a simple network of Ethernet cables, sometimes (wrongly) referred to as “Cat 5”.

An Ethernet cable is simply four pairs of twisted cable in one encapsulation, with a small modular 'RJ' connector at each end. It can carry multiple signals, but take care to select the correct one as there are some variations and its important to have the right cable correctly terminated in the right connector.

iRig

Recorder



No need to drag a heavy recorder around with you as your Smartphone can do the job even better. All you need is the iRig app, which instantly turns your smartphone into a great quality digital recorder. You can edit on screen and transmit the finished recording back to base in seconds by email.


iRig recorder logo
See iRig page
for details.
Studio equipment source mixer
Mixing Consoles
The heart of the studio, where all audio is switched, blended, adjusted and controlled from. See some of the many and varied options available on this page.
Radio stations now announce a wide variety of platforms on which their programmes can be received.  They cover all the different bands in use for broadcasting throughout the last 100 years  since broadcasting began.

  • Long Wave
  • Medium Wave
  • Short Wave
  • FM (VHF)
  • DAB
  • Television
  • Satelite
  • WWW - The Internet

In the near future, 5G will be rolled out, making all the many services available over a much wider area, thanks to its vastly improved speeds over current and previous internet transmission. Speeds of 3Gbps have recently been achieved, a huge advance from the 1 or 2 Mbps 'service' that is still endured by many UK residents.

DAB  DAB+  FM  WWW

all this for only
£ 142
Click the radio above
for more details

Remote Control
USB outlet
Two alarms
Line output
Headphone Socket
Full Colour display
3  speakers system,
6  position EQ,
Seperate bass & treble

The world's stations
at your fingertips!
Full internet capability,
hear 100,000 stations

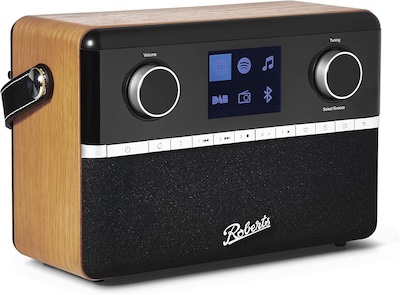

Roberts Digital radio No 2

Radio Transmission Equipment




(Summary of information
from the 'Transmission' section)

Less than a generation ago, radio and TV studios would use very expensive equipment; a typical radio studio would cost between £20,000 and £150,000 to build. This can now be achieved for a couple of thousand pounds and the resulting studio will provide much better audio quality than previously.  It will also be much easier to operate!

Digitisation has revolutionised radio studios and programme origination. Until very recently all sound sources in radio studios were analogue, which means they sent a contant stream of varying audio information to the user. Sound sources were traditionally quite large and they used separate cables for each source, until the point of mixing. Digital has decimated the size and cost of almost every item (except human beings; we are probably next!).

Digital audio has had some really profound effects in four distinct areas of the operation of radio stations. These are seen most in controllability, miniaturisation and especially in cost.

Audio production Many sources have changed beyond all recognition, especially in size.  The adaption of digital techniques, in particular the use of compression, renders files much smaller and make it possible to record on very small (physically) media.

Controllability of equipment has become easier, with remote operation of sources being simple to achieve.

Administration. These are vital in tracking royalty liabilities. Now all logging of music played can be done automaticaly.

Transmission:  the process of sending the finished programme to listeners.

Playout Equipment

Playout equipment has become far more efficient, smaller and thus very much cheaper. The kit is also much more easily controlled, smaller, faster and cheaper too. Control is a key aspect of digital's improvements: instead of having to be adept at equipment operation or the technical parameters  radio presenters are free to concentrate on  programme content.

Sources

The key source of equipment for most radio stations is the item with which it all began - the microphone.  In the early days of radio this was a huge contraption mounted on a  trolley. To add music, the microphone would be wheeled over to an ensemble of live musicians, or placed next to a gramophone - electric pickups for turntables only came in ten years after broadcasting started.
Internet Radio Book
Radio Museum

Finding the right radio receiver

We've found that the best range of domestic radio receivers (i.e. for LW, MW, FM and DAB) can be found on Amazon. They usually have next day, or in some areas even SAME DAY, delivery on all items and a superb 'after sales' service with full refunds if you are not delighted. They sell  all kinds of kit right up to 'high end' communications receivers.
Full range of
Receivers

DAB Radios        LW Radios     SW Radios

Scanners        FM/DAB
  Satellite Tuners

AirBand       Amateur Radio        2-way business

SDR Stations

Guide to RTL-SDR book
A comprehensive guide to the RTL2832U RTL-SDR software defined radio by the authors of the RTL-SDR Blog. The RTL-SDR is a super cheap software defined radio based on DVB-T TV dongles that can be found for under $20.

This book is crammed full fo tutorials and tips that show you how to get the most out of your RTL-SDR dongle. Most projects described in this book are also compatible with other wideband SDRs such as the HackRF, Airspy and SDRPlay RSP.

The book is available now, as a print copy or as a Kindle - seehere for details.

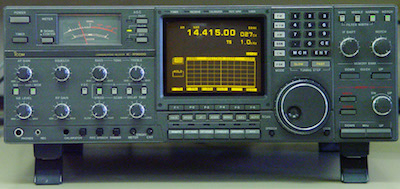

ICOM Communications Receeiver (all band)
