Without doubt, AM transmissions can sound as good as FM, but the transmitters do need extra band space to make the audio sound right.  To combat interference effects, manufacturers have reduced the IF bandwidth of AM receivers, reducing AM's ability to sound clear and bright.
AM STEREO graphic sky
We have been champions of AM STEREO transmissions since first hearing it in the early 1980s. Subsequent work on two systems (Kahn-Hazeltine and Motorola C-QUAM) with broadcasters convinced us that this is the way for AM to move, but historically the quest to cram in more and more small low power transmitters has worked against AM, leaving the band full of  low quality equipment.

Every Breath You Take   POLICE

on HBC, 1287 AM Stereo, Sapporo Japan

Classic 1983 #1 smash hit, as received in analog C-Quam AM Stereo in Japan via night time skywave in the Tokyo area, 500 miles away from Sapporo.
Yes, a 500 mile night time path
              - and it still sounds great!

The audio quality is among the best we've ever heard from analog AM radio, thanks to an excellent receiver, very quiet band conditions, and the Orban Optimod-AM 9100 audio processor. 12.5 kHz audio bandwidth with stereo enhancement added
AM STEREO LONG LOGO

Harris AMS-G1 AM Stereo Exciter


The excellent Harris AMS-G1 C-Quam AM Stereo exciter is seen here being put through its paces. This is a technical review and includes a long look 'under the hood' of the equipment.

This is not the older VPCM AM Stereo system that Harris developed themselves, but  the better known C-Quam system, which is still in use on around 300 radio stations in France, Australia and the USA.
Quad Modulation diagram
A display ad for the AMazin' AM STEREO campaign that SONY ran in Canada back in the mid-80's promoting their complete line of AM STEREO products at that time.

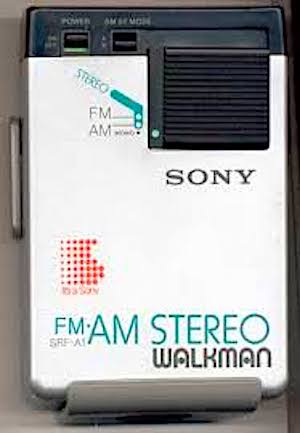

Look closely and you can see the SRF-A1 Walkman, SRF-A100 radio, CFS-6000 boombox, ST-JX220A and ST-JX520A home tuners, various STR-AV series receivers, WM-F16 Walkman with cassette and XR-A series car radios.  Many of the above products were only sold in Canada and Australia and were never introduced to the American marketplace.
(Courtesy of AMStereo.com
SONY AM Azing AM Stereo graphic
Transmission & Stations
AM Stereo provides clear full-dimensional Stereo sound that envelops the listener with fidelity usually thought of as something only found on the FM band. AM Stereo has been used all around the world for over two decades and is employed by hundreds of stations on every continent. Since its introduction, millions of AM Stereo receivers have been sold for home, car, and portable listening enjoyment.

AM Stereo is an analogue system that has been optimized for high quality (meaning good audio fidelity) reception even with weak, distant signals. The greater long-distance range of AM signals, especially at night, gives stations a much larger coverage area, extending hundred and often to thousands of miles.  FM by contrast is limited to little more than 'line of sight', a maximum of perhaps 70 miles if the highest locations are chosen for transmission.

The big advantage of AM Stereo is that it not only reaches huge distances, but it is reverse compatible with existing mono receivers. They receive the same programme and  with quite an improvement in audio quality too.

Costs of

Transmission

AM Stereo is a lot cheaper to install than other systems, such as DRM or IBOC. Its cheaper for the transmitter and listeners do not need to upgrade to continue receiving the station.

Here's what the AM STEREO web site says:
"The benefits of AM Stereo are well suited to every programming format, as its greater realism and superior frequency response adds just as much enjoyment and excitement to news and talk programs as it does to music.

AM Stereo programming

Sporting events and live performances especially come alive in Stereo with stunningly realistic detail, while voice and music is received with greater clarity and richness of sound, even if monaural audio sources are used. Commercials, jingles, and station IDs are particularly effective at immediately catching listeners' attention when they are broadcast with dramatic Stereo effects.
Copyright (c)  2018  World of Radio Ltd, Registered in England and Wales # 8503418.
All Rights Reserved.  Reproduction strictly prohibited.

All I

Wanna Do

SHERYL CROW

Power 1490   Tucson Arizona

Dance Music in AM Stereo

for the 1990s generation!


From 1991 to 1995, "Power 1490" KJYK in Tucson was the hippest dance station in Arizona, and they broadcast in AM Stereo. The quality of this 'Sound of the Dessert' station was supendous - it simply sizzled. By the 1990s, American kids had enjoyed FM radio for a couple of dedades but they  were happy tuning to this AM station.

Listen now to understand what the quality was like - these are 'off the air' telescoped air checks of the Power 1490 transmissions, at about 30 miles away!
AM Stereo logo in colour
AM Stereo station logo

THE GORT   is
WXYG  in Minnestota
Classic Album Hits format.
On 540 AM and worldwide
ONLINE here
WBC Radio panel
Stereo sound was first developed in the early 1900s and made its first commercial appearance on some film soundtracks in the 1930s.

In the 1950s, some AM engineers designed a system that could give good stero reception, notably Leonard Kahn, a brilliant radio engineer who lived in Connecticut.  The Kahn system was put on the market around 1980 and was one of five rivals being developed. They each had good and bad points.

An example of the problems was 'Platform Motion', which the  C-QUAM system suffered from.  After dark the skywave would come in out of phaser with the groundwave.  As the two varied in phase this could cause the audio to swing from the left to the right speakers, and back again, which could be very disconcerting, especiallly while driving!

In the 1960s, engineers turned their attention to adding stereo to FM transmitters, which were very much a backwater in commercial radio terms. With the addition of stereo and the lack of amplitude interference, the FM band quickly became dominant for music programmes.

Each of the AM Stereo systems had their foibles and faults but, just as it was decided that the FCC would give their blessing to the Magnavox system, lawyers acting for Leonard Kahn decided that it would be fairer if the market place were allowed to decide which system became dominant.   The result was a mish-mash - no one knew which system to go for and receiver manufacturers hesitated and procrastinated.




AM Stereo History Committee

Brief History of AM STEREO stations & listening

Why do stations transmit AM Stereo?


To broadcast in AM stereo needs stereo programme sources, an exciter adding to your transmitter and the chain adapting to AM stereo, usually by some modifications to the bandwidth.

The exciter is usually the only new item a radio station needs and the cost is around £5,000.  Motorola, NEC and Delta Electronics manufacture the necessary AM Stereo Exciters, details of the Delta  ASE 2 can be found HERE.
Sadly, the US regulator, the FCC, left the market to decide which system won, and the money guys able to roll their system out won with the C-QUAM system, whose main developer was Motorola. It finally became dominant by the early 1990s with Kahn, Harris and Magnavox pulling out..

The FCC finally made its decision in 1993, but by then the AM band had become ravaged and damaged by the AM Stereo wars.

Mototola have since made many changes to their system and have largely conquered its problems, such as Platform Motion.

AM STEREO flash button
AM Stereo
Twitter button
Blog Button
Facebook Button
Email button
World of Radio Logo

High Power AM stations

operating today


In the USA there are currently 122 high power (50 kilowatts) AM stations broadcasting in the AM Stereo mode.

KFNX      1100
KFQD       750
KFXR      1190
KFXX      1080
KDWN      720
KNX        1070
WWKB    1520
WWFE      670
WNTP       990    (ex WZZD / WIBG)

For a full listing of high power AM stations in the USA, click HERE


Many other countries have had AM stereo stations too, especially Brazil, Spain and Australia -





Texas station KSET 1300 changed its call sign to KLLS (a tribute to Chicago radio station WLS as Double L S ) in  2016. Since then it has broadcast a classic hits / Top40 music format with AM Stereo  branding itself as "Musicradio Double-L S".

Jeff Davis, a DJ on WLS in the 80s and still on 94.7, WLS-FM, is the voice of 1300, whichj is centred in Lumberton, just east of Houston, Texas.  The station broadcasts to the 'Golden Triangle' and is owned by South East Texas Telecom LLC.

On February 12, 2017 KLLS went off air due to antenna array damage and effects of Hurricane Harvey. The FCC have granted a silent STA while the antenna is repaired; SE Texas Telecom owner Chris Boone hopes to relaunch KLLS in Summer 2018.
KLLS car sticker
Sony AM Stereo radio
